Spectrum Analyzers and Receivers
Benchtop/Handheld Real-Time Spectrum Analyzer

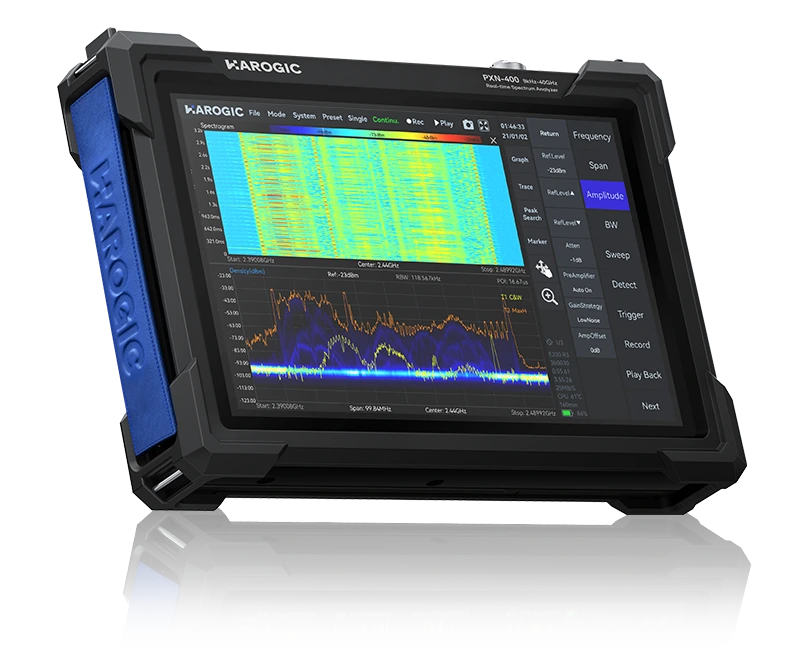

PX series is the handheld real-time spectrum analyzer with 10.1-inch full touch screen and typical standby time of more than 3 h. The weight of PX model is only 1.5 kg but it covers frequency range from 9 kHz to 40 GHz, analysis bandwidth up to 100 MHz and sweep speed of up to 900 GHz/s.
Compact USB Spectrum Analyzer/Receiver

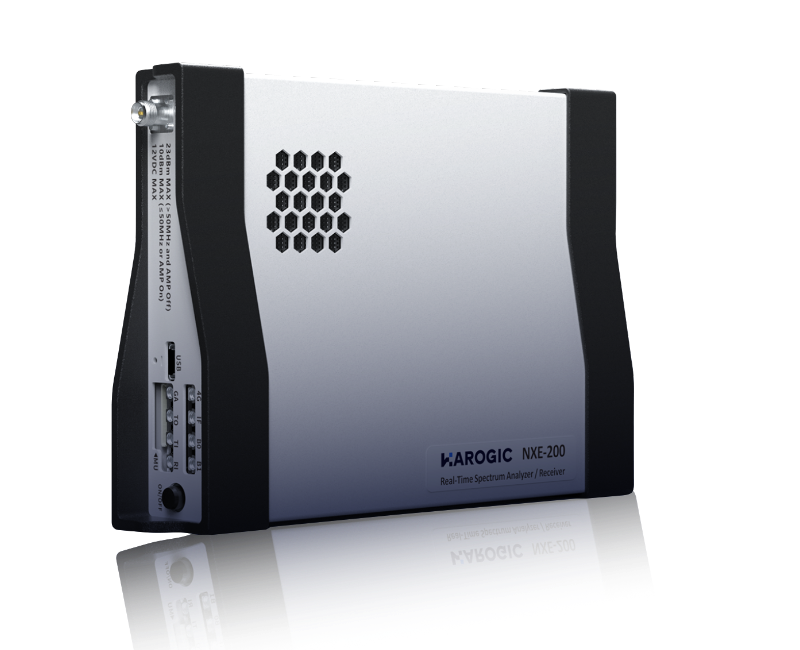

NX series is a miniaturized network node real-time spectrum analyzer based on 1 GbE Ethernet interface and high-speed FPGA signal processing. NX model is with compact design but not simple, the RF front end contains a complete preamplifier, attenuator, multi-segment preselector. It is able to output spectrum, digital IQ stream, power detection and real-time spectrum.
USB vector signal generator

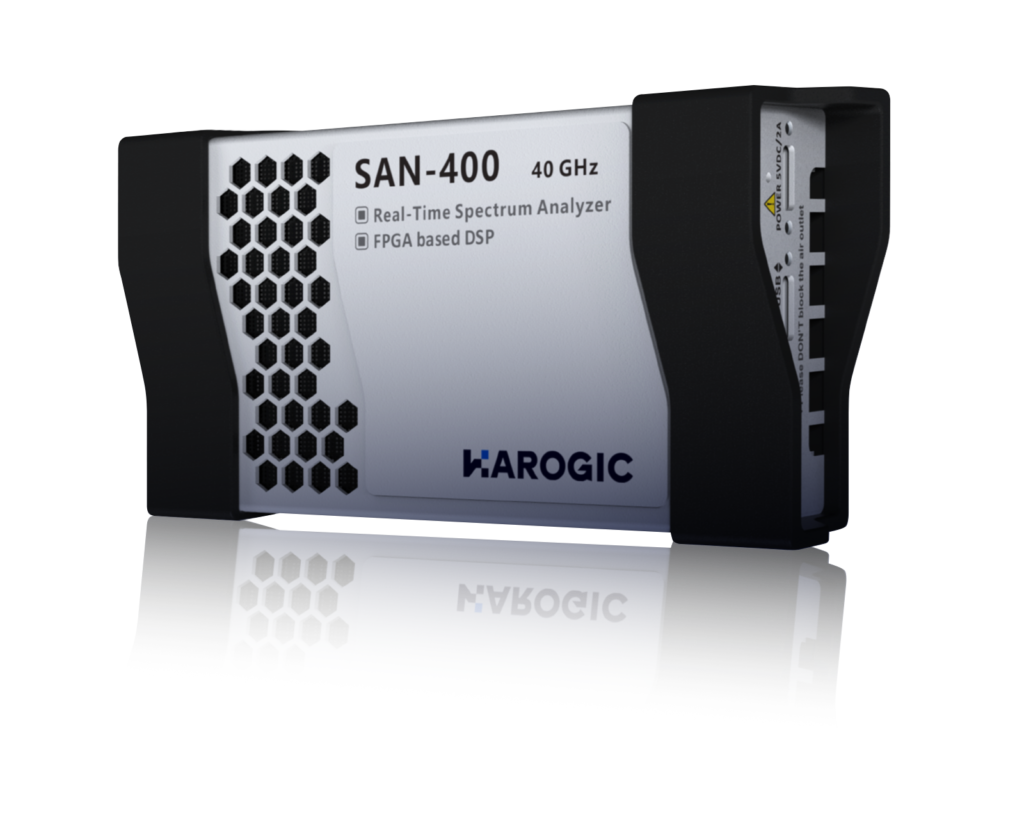

SA series from HAROGIC is designed for compact USB real-time spectrum analyzer. Based on SWaP-C and self-develop filters, the weight and size for SA series up to 40 GHz is compatible with a smart phone, suitable for embedded RF system and portable RF measurement. SA models are equipped with highly compatible APIs, empowering customers to develop their own RF system via second development.
USB
NETWORKED
HANDHELD
| Product Name | Frequency | Phase Noise 1 GHz, 10 kHz Offset | DANL 1 GHz | Analysis Bandwidth | Sweep Speed |
|---|---|---|---|---|---|
| New SAN Series | 9 kHz-4.5/6/9 GHz | -110 dBc/Hz | -168 dBm/Hz | 50/100 MHz | 1.0 THz/s |
| SAN Series | 9 kHz-4.5/6.3/8.5/40 GHz | -107 dBc/Hz | -161 dBm/Hz | 6.25/25/100 MHz | 1.1 THz/s |
| SAE Series | 9 kHz-9.5/20 GHz | -100 dBc/Hz | -161 dBm/Hz | 100 MHz | 1.1 THz/s |
| Product Name | Frequency | Phase Noise 1 GHz, 10 kHz Offset | DANL 1 GHz | Analysis Bandwidth | Sweep Speed |
|---|---|---|---|---|---|
NXN Series | 9 kHz-4.5/6.3/8.5/40 GHz | -107 dBc/Hz | -161 dBm/Hz | 6.25/25/100 MHz | 657.4 GHz/s |
NXE Series | 9 kHz-9.5/20 GHz | -100 dBc/Hz | -168 dBm/Hz | 100 MHz | 665.6 GHz/s |
| Product Name | Frequency | Phase Noise 1 GHz, 10 kHz Offset | Analysis Bandwidth | Operating System | Size, Weight |
|---|---|---|---|---|---|
PX Series Standard | 9 kHz-4.5/6/9/20/40 GHz | -110 dBc/Hz | 50/100 MHz | Linux | 10.1″, 1.5 kg |
PX Series Rugged | 9 kHz-9.5/20/40 GHz | -100 dBc/Hz | 100 MHz | Linux | 10.1″, 2.5 kg |
PX Series Geek | 9 kHz-9.5/20/40 GHz | -100 dBc/Hz | 100 MHz | Windows 11 | 8.8″, 1.1 kg |
