SAN Series
- SAN Series
- Frequency Range: 9 kHz to 4.5/6.3/8.5/40 GHz
- 1 GHz DANL: -158 dBm/Hz
- 1 GHz Phase Noise: -107.5 dBc/Hz@10 kHz
- Analysis Bandwidth: 6.25/25/100 MHz
- USB3.0/2.0 Type C Interface
- Highly Compatible API Interface
- ARM and X86 Processor are supported
- Linux and Windows operating systems are supported
Details
The NXN Series is a networked real-time spectrum analyzer family offering frequency coverage from 9 kHz to 40 GHz, designed for precise RF signal analysis, monitoring, and measurement applications. It boasts a 6.25 MHz analysis bandwidth and swift 69 GHz/s sweep speed. With a dynamic range of -160 dBm/Hz and robust phase noise performance at -110 dBc/Hz, it ensures accurate and reliable measurements. Ideal for various demanding applications, its compact size and GNSS support make it a dependable choice for professionals on the go.
Available Models
NXN SERIES
| Model | Product Manual |
Frequency | Phase Noise 1 GHz, 10 kHz offset |
DANL 1 GHz, Amp On |
Analysis Bandwidth |
Sweep Speed RBW=250 kHz |
Get a Quote |
|---|---|---|---|---|---|---|---|
| NXN-45 |
|
9 kHz-4.5 GHz | -111.3 dBc/Hz | -163.5 dBm/Hz | 6.25 MHz | 152.5 GHz/s | Get a Quote |
| NXN-60 |
|

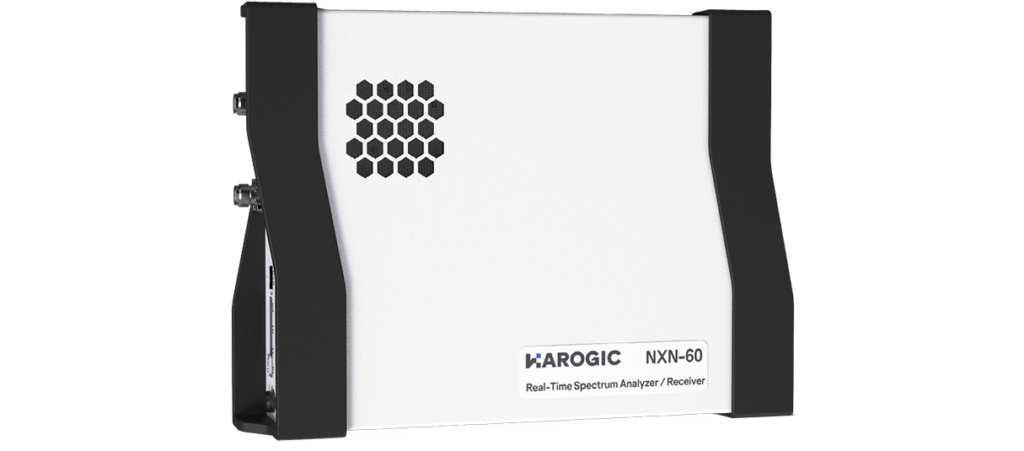

9 kHz-6.3 GHz | -110.4 dBc/Hz | -164.8 dBm/Hz | 25 MHz | 285.7 GHz/s | Get a Quote |
| NXM-60 |
|
9 kHz-6.3 GHz | -114.2 dBc/Hz | -163.9 dBm/Hz | 100 MHz | 354.4 GHz/s | Get a Quote |
| NXM-80 |
|
9 kHz-8.5 GHz | -120 dBc/Hz | -167.1 dBm/Hz | 100 MHz | 355.8 GHz/s | Get a Quote |
| NXN-400 |
|
9 kHz-40 GHz | -107.5 dBc/Hz | -160.0 dBm/Hz | 100 MHz | 657.4 GHz/s | Get a Quote |
