PNB-60
- PNB-60
KEY FACTS
- Frequency Range: 100 kHz to 6 GHz
- Number of Ports: 2 ports
- High-performance directional coupler with effective directivity 40 dB
- Output power:-35 dBm to 5 dBm
- Dynamic range: 100 dB to 120 dB (typ.)
- Trace noise:≤0.003 dBrms (typ.)
- IF bandwidth:15 Hz to 75 kHz
- Sweep speed: 150 us/point at 75 kHz IF bandwidth
- Supports the ECB-60 electronic calibration module
- 5-hour battery life with power bank support
Details

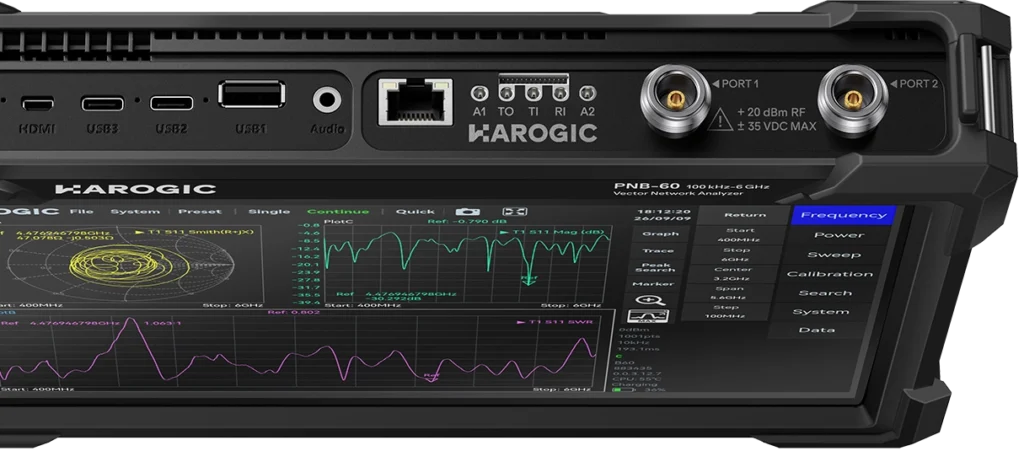

The HAROGIC PNB-60 is a handheld vector network analyzer covering a frequency range of 100 kHz to 6 GHz. Its dual-port S-parameter measurement architecture combines high performance with portability. Equipped with high-performance directional couplers, it delivers an effective directivity of ≥40 dB. Its professional receiver design provides a dynamic range of up to 100–120 dB and typical trace noise of ≤0.003 dB RMS. Full S-parameter measurements—including S11, S12, S21, and S22—are supported.Weighing only 1.4 kg, the PNB-60 features a 10.1-inch high-resolution multi-touch display for a smooth, intuitive user experience. It offers a typical battery life of five hours and supports operation from a portable power bank, making it easy to deploy for laboratory R&D, field installation, and on-site maintenance.Combined with the ECB-60 electronic calibration module, amplitude- and phase-stable cables, and VNStudio software, the PNB-60 provides a complete test solution. It also supports SCPI commands and remote control over LAN, making RF component testing more efficient, reliable, and portable.
Available Models
PNB-60
| Model | Product Manual | Frequency | Number of Ports | Port Output Power | Dynamic Range | Size, Weight | Get a Quote |
|---|---|---|---|---|---|---|---|
| PNB-60 |
|
100 kHz-6 GHz | 2 | -35 dBm to 5 dBm | 100 dB to 120 dB | >40 dB | 1,498 USD |
