SGF-60
- SGF-60
KEY FACTS
- Frequency range: 9 kHz to 6 GHz
- Maximum level output：9 dBm to 16 dBm
- Minimum level output: <-100 dBm
- Level output up to 25 dBm (opt.)
- 1 GHz phase noise: < -134 dBc/Hz@10 kHz
- Maximum real-time bandwidth: 50 MHz
- Maximum playback bandwidth: 320 MHz (opt53)
- 1 GHz harmonics (0 dBm): <-60 dBc (typ.)
Details

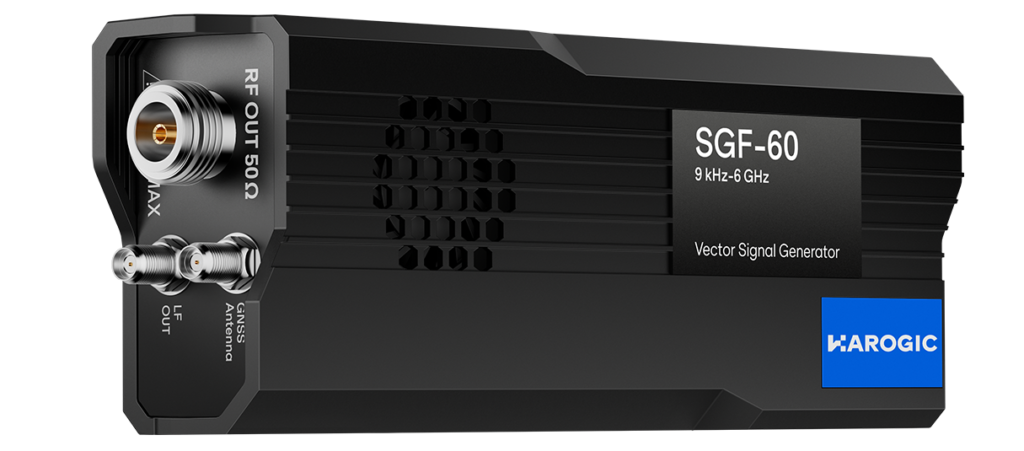

The SGF-60 is a vector signal generator with frequency from 9 kHz to 6 GHz. It offers a maximum instanous bandwidth of 320 MHz with maximum internal 1 GB. It can output CW, AM/FM, digital modulated signal, frequency/amplitude sweep, chirp signal at affordable price.
Available Models
SGF-60
| Model | Product Manual |
Frequency | Phase Noise 1 GHz, 10 kHz offset |
Maximum Output Level | Real-time bandwidth | Playback bandwidth | Get a Quote |
|---|---|---|---|---|---|---|---|
| SGF-60 |
|
9 kHz-6 GHz | -134 dBc/Hz | 9 dBm – 16 dBm | 50 MHz |
100 MHz 320 MHz (opt.) |
