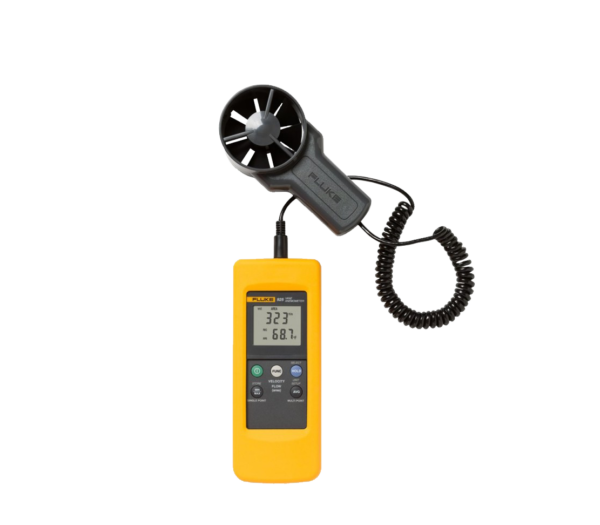

Fluke 925 Vane Anemometer
Key features
- Ability to measure wind speed in feet per minute or meters per second
- Data capture using one button and the ability to average multiple readings
- Min and Max alarm setting to alert the user when limits have been met
- Durable over mold housing to protect the unit from drops
- 1 M extension of sensor from display to ensure air flow is captured in hard to reach locations
Product details
Product overview: Fluke 925 Vane Anemometer
The Fluke 925 is an economical and durable vane anemometer designed to measure wind speed, air flow and wind temperature conveniently. With a separate air flow sensor and display, the Fluke 925 provides the user the flexibility to measure air flow in a variety of locations. Vane anemometers are well suited to measure air flow in residential and commercial buildings as part of regular maintenance checks
Specifications
General Specifications
| Specification | Fluke 925 Vane Anemometer |
|---|---|
| Display | Dual 4-digit (9999 count) LCD |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Operating Humidity | Maximum 80% RH |
| Power Supply | 9 V Heavy-Duty Alkaline Battery |
| Battery Life | Approximately 100 Hours |
| Dimensions | 181 × 71 × 38 mm (7.1 × 2.8 × 1.4 in) |
| Weight | 363 g (0.8 lb), including battery and sensor |
| Data Hold | Freezes displayed reading |
| Air Velocity Sensor | Conventional angled vane with low-friction ball bearing |
| Temperature Sensor | Precision Thermistor |
| Sensor Head Diameter | 70 mm |
| MIN/MAX Memory | Records and recalls minimum and maximum readings |
| Average Reading Memory | Single-point (up to 2 hours) or Multi-point (up to 8 readings) |
| Automatic Power Off | Sleep mode after 20 minutes (bypass available) |
| Air Velocity Units | m/s, ft/min |
| Air Flow Units | CMS (m³/s), CFM (ft³/min) |
| Temperature Units | °C, °F |
| Warranty | 1 Year |
Included Accessories
| Function | Range | Resolution | Accuracy |
|---|---|---|---|
| Air Velocity (m/s) | 0.40 – 10.00 m/s | 0.01 m/s | ±0.5 m/s |
| Air Velocity (m/s) | 10.00 – 25.00 m/s | 0.01 m/s | ±0.75 m/s |
| Air Velocity (ft/min) | 80 – 1965 ft/min | 1 ft/min | ±100 ft/min |
| Air Velocity (ft/min) | 1965 – 4900 ft/min | 1 ft/min | ±150 ft/min |
| Air Flow (CMS) | 0.01 – 99.99 m³/s | 0.01 | 0 to 9.999 m³/s |
| Air Flow (CFM) | 1 – 9999 ft³/min | 1 | 0 to 9,999 ft³/min |
| Air Temperature | 0 °C to 50 °C (32 °F to 122 °F) | 0.1 °C / °F | ±0.8 °C (±1.5 °F) |
Optional Accessories
| Accessory | Description |
|---|---|
| TM-SWA RS232 Cable & Software | Enables data transfer, real-time logging, charting, and time-stamped event analysis |
