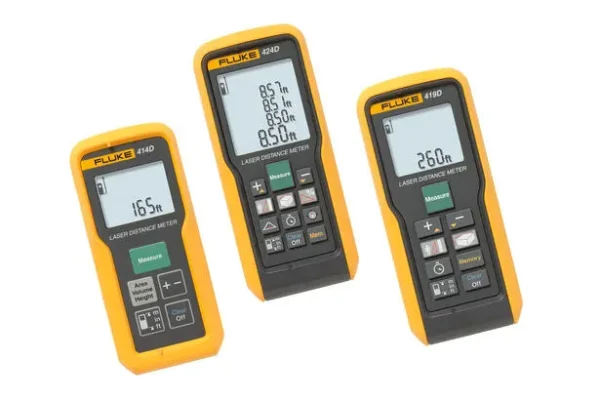

Fluke 424D Laser Distance Meter
Key features
- Versatile laser distance meter that instantly measures up to 100 meters (330 feet) with one-button point-and-click operation
- Quickly calculates area (square feet/meters) and volume
- Includes 180° inclination sensor for leveling and height tracking
- Offers enhanced Pythagoras calculation for determining distance indirectly from three other measurements
Product details
Product overview: Fluke 424D Laser Distance Meter
Fluke 424D Laser Distance Meter delivers a full measure of sophisticated features
The Fluke 424D is our most sophisticated laser distance meter packed with versatile features to save you more time in more situations and reduce errors. Just point and click to instantly measure up to 100 meters (330 ft.), accurate to + 1 mm. No scales to interpret or misread. The extra bright laser supports easy targeting even at longer distances. Extra features like a 180º inclination sensor, the corner angle feature, and a built-in compass make it easy to get accurate measurements in hard-to-reach locations. You’ll be able to see the results more clearly on the large, four-line backlit display. No matter your job, the 424D laser distance meter will help you do the work of two people on your own.
Other helpful features:
- Provides a compass “heading” for distance measurement
- Provides easy to-use addition and subtraction function
- Includes automated end-piece correction. When measuring from an edge or corner, a built-in sensor detects the position of this bracket and automatically changes the reference point.
- Provides audible keypad feedback
- Offers improved visibility with a bigger, 4-line backlit display
- Improved battery life of 5000 measurements with automatic shut-off feature
- Offers minimum/maximum tracking to measure the room’s diagonal and horizontal distance from a stable measurement point
- Allows mounting on a tripod for stable long distance measurements
- Includes stake out function for marking off defined measured lengths
- Stores the last twenty measurements for quick recall
- Strong environmental protection with IP54 (water spray and dust proof) sealing
- Powered by two AAA batteries
- Comes with carrying pouch and three-year warranty -30-
Specifications
| Distance Measurement | |
|---|---|
| Typical Measuring Tolerance | ±1.0 mm |
| Maximum Measuring Tolerance | ±2.0 mm |
| Typical Measuring Range | 80 m (260 ft) |
| Maximum Range (with Leica Target Plate GZM26) | 100 m (330 ft) |
| Range in Unfavorable Conditions | 60 m (195 ft) |
| Smallest Unit Displayed | 1 mm |
| Laser Spot Size | 6 / 30 / 60 mm (at 10 / 50 / 100 m) |
| Tilt Measurement | |
| Tilt Accuracy (Relative to Laser Beam) | ±0.2° |
| Tilt Accuracy (Relative to Housing) | ±0.2° |
| Tilt Measurement Range | 360° |
| General Specifications | |
| Laser Class | Class 2 |
| Laser Type | 635 nm, <1 mW |
| Protection Rating | IP54 |
| Automatic Laser Shut-Off | After 90 Seconds |
| Automatic Power-Off | After 180 Seconds |
| Battery Type | 2 × AAA 1.5 V (NEDA 24A / IEC LR03) |
| Battery Life | Up to 5,000 Measurements |
| Dimensions (L × W × D) | 127 × 56 × 33 mm |
| Weight (Including Batteries) | 158 g |
| Operating Temperature | -10 °C to +50 °C (14 °F to +122 °F) |
| Storage Temperature | -25 °C to +70 °C (-13 °F to +158 °F) |
| Calibration | Tilt and Compass |
| Maximum Operating Altitude | 3,000 m |
| Maximum Relative Humidity | 85% RH (-7 °C to 50 °C) |
| Safety & Compliance | |
| Safety Standards | IEC 61010-1:2001 EN60825-1:2007 (Class 2) |
| Electromagnetic Compatibility (EMC) | EN 55022:2010 EN 61000-4-3:2010 EN 61000-4-8:2010 |
| Measurement Notes | |
| Typical Accuracy | Based on 100% target reflectivity (white painted wall), low background illumination, at 25 °C. |
| Maximum Accuracy | Based on 10%–500% target reflectivity, high background illumination, and operating temperatures from -10 °C to +50 °C. |
| Distance Accuracy | 0.05–10 m: Stated tolerance (95% confidence) 10–30 m: Additional ±0.1 mm/m Above 30 m: Additional ±0.15 mm/m |
| Tilt Measurement Note | After user calibration. Additional deviation of ±0.01° per degree up to ±45° in each quadrant. Maximum deviation increases by ±0.1° over the full operating temperature range. |
