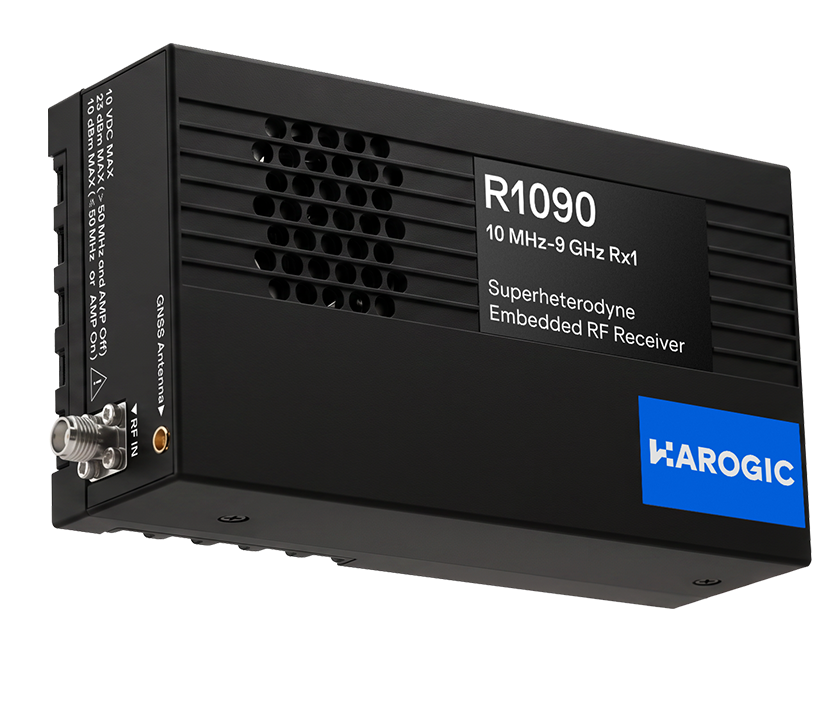

Embedded RF Receiver R1000 Series
The HAROGIC R1000 Series combines a single-channel high-performance superheterodyne RF receiver with Raspberry Pi CM5 in a compact enclosure. Covering 10 MHz to 6 / 9 / 20 / 40 GHz, it offers 50 MHz standard and 100 MHz optional real-time bandwidth. A unified HTRA API enables the same software workflow across models, supporting both host-connected IQ acquisition and standalone embedded applications for spectrum monitoring, distributed signal acquisition, edge processing and OEM deployment.
| Product Name | Frequency | Real-time Bandwidth | Noise Figure | Bus Interface | Processor |
|---|---|---|---|---|---|
| R5000 Series | 1 MHz–20 GHz | 500 MHz | 9 dB @ 1 GHz 12 dB @ 9 / 20 GHz | PCIe 3.0 x8 USB 3.0 Thunderbolt（opt.） | − |
| R1000 Series | 10 MHz-6/9/20/40 GHz | 50 / 100 MHz | 6 dB @ 1 GHz 7 dB @ 9 GHz 14 dB @ 20 GHz 24 dB @ 40 GHz | 1 GbE | Raspberry Pi 5 |
