PGA-60
- PGA-60
KEY FACTS
- Frequency range: 9 kHz to 6 GHz
- Maximum level output：7 dBm to 14 dBm
- Level output up to 25 dBm (opt.)
- 1 GHz phase noise: < -124 dBc/Hz@10 kHz
- Maximum real-time bandwidth: 50 MHz
- Maximum playback output bandwidth: 100 MHz
- 0 dBm output harmonics: <-50 dBc (typ.)
- Operation time: 2.5 hours (typ.)
Details

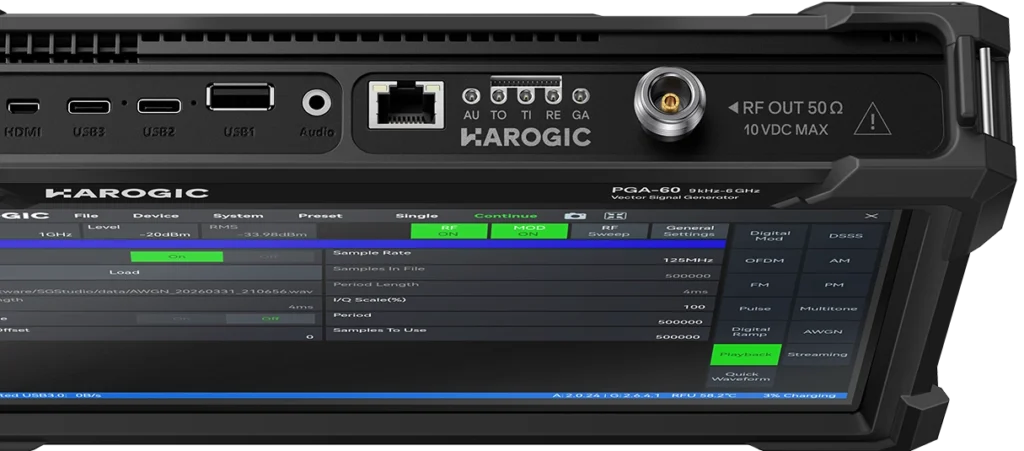

The PGA-60 is a 1.4 kg handheld vector signal generator with frequency from 9 kHz to 6 GHz. It offers a standard instanous bandwidth of 100 MHz and 50 MHz of real-time streaming bandwidth. Featuring a 2.5-hour battery, it enables engineers to “generate without limits” during wireless maintenance, radar testing, and UAV simulation.
Available Models
PGA-60
| Model | Product Manual |
Frequency | Phase Noise 1 GHz, 10 kHz offset |
Maximum Output Level | Playback Bandwidth | Size, Weight | Get Quote |
|---|---|---|---|---|---|---|---|
| PGA-60 |
|
9 kHz-6 GHz | -124 dBc/Hz |
7 dBm-14 dBm 25 dBm (opt.) |
100 MHz | 10.1", 1.4 kg | Get a Quote |
