New SAN Series
- New SAN Series
KEY FACTS
- High-performance superheterodyne receiver
- Frequencyrange:9 kHz to 4.5/6/9 GHz
- IF and image rejection:>95 dBc(typ.)
- 1 GHz DANL:-168 dBm/Hz(typ.)
- 1 GHz phase noise:<-110 dBc/Hz@10 kHz(typ.)
- 1 GHz phase noise measurement:<-125 dBc/Hz@10 kHz(typ.)
- Analysis bandwidth:50 MHz/100 MHz(opt.50)(typ.)
Details

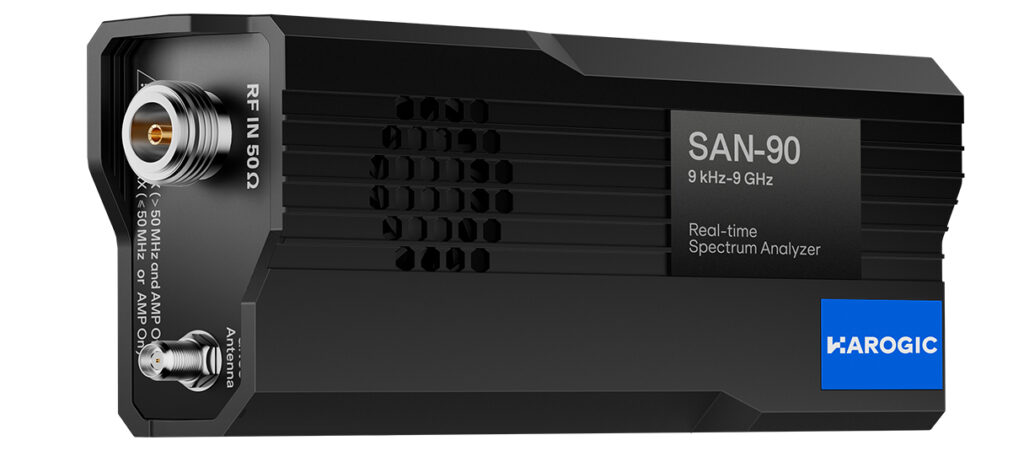

New HAROGIC SAN Series is a USB-based spectrum analyzer and receiver featuring a frequency range of 9 kHz up to 9 GHz. Designed to deliver high performance on a budget, the series includes essential measurement functions such as channel power, automatic harmonics, phase noise, and AM/FM analog demodulation. Furthermore, its highly compatible APIs facilitate seamless secondary development, offering customers exceptional versatility and value.
Available Models
NXE SERIES
| Model | Product Manual |
Frequency | Phase Noise 1 GHz, 10 kHz offset |
DANL 1 GHz, Amp On |
Analysis Bandwidth |
Sweep Speed RBW=250 kHz |
Get a Quote |
|---|---|---|---|---|---|---|---|
| NEW SAN-45 |
|
9 kHz-4.5 GHz | -110 dBc/Hz | -168 dBm/Hz |
50 MHz 100 MHz (opt.50) |
≥1 THz/s | Get a Quote |
| NEW SAN-60 |
|
9 kHz-6 GHz | -110 dBc/Hz | -168 dBm/Hz |
50 MHz 100 MHz (opt.50) |
≥1 THz/s | Get a Quote |
| NEW SAN-90 |
|
9 kHz-9 GHz | -110 dBc/Hz | -168 dBm/Hz |
50 MHz 100 MHz (opt.50) |
≥1 THz/s | Get a Quote |
