PX Series Rugged
- PX Series Rugged
KEY FACTS
- IEC IP68 certified
- MIL-STD-810H method-512.6/514.8/516.8 certified
- 2.5 kg lightweight, 10.1-inch multi touchscreen
- Frequency range: 9 kHz to 9.5/20/40 GHz
- 1 GHz DANL: -161 dBm/Hz
- Analysis Bandwidth: up to 100 MHz
- Operation time: 4 hours (typ.)
- Built-in Nvidia Jetson Orin NX 8G (opt.)
Details

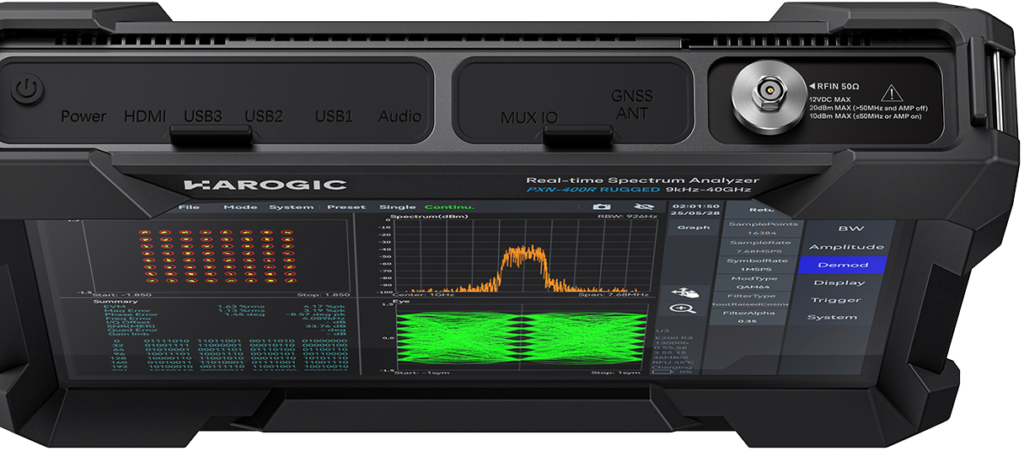

HAROGIC PXR series spectrum analyzer is designed for durability an IP68 rating. It offers a 100 MHz analysis bandwidth as standard and supports frequencies from 9 kHz to 9.5/20/40 GHz, with a sweep speed surpassing 500 GHz/s. Additionally, the PXR series includes the Orin NX 8G option, providing up to 117 TOPS of AI computing power. The analyzer also features a highly compatible, positioning it as an efficient AI-powered spectrum analysis platform for fast spectrum identification and analysis.
Available Models
PX SERIES RUGGED
| Model | Product Manual |
Frequency | Protection Level | Phase Noise 1 GHz, 10 kHz offset |
Work Hours | Weight, Size | Get a Quote |
|---|---|---|---|---|---|---|---|
| PXE-90R |
|
9 kHz-9.5 GHz | IP68 | -167.5 dBm/Hz | 4 h | 2.5 kg, 10.1" | Get a Quote |
| PXE-200R |
|
9 kHz-20 GHz | IP68 | -166.3 dBm/Hz | 4 h | 2.5 kg, 10.1" | Get a Quote |
| PXN-400R |
|
9 kHz-40 GHz | IP68 | -160.0 dBm/Hz | 4 h | 2.5 kg, 10.1" | Get a Quote |
