Fluke 101 kit Digital Multimeter/i400E Clamp Kit

Fluke 101 kit Digital Multimeter/i400E Clamp Kit

Key features

0.5% Basic DC Accuracy
CAT III 600V Safety Rated
Diode Testing Function
Continuity Test with Buzzer
Compact One-Hand Operation
Lightweight Portable Design
Rugged & Durable Construction
Automatic Shutdown Function
Easy Battery Replacement
Reliable FLUKE Performance

Fluke i400E AC Current Clamp

Compatible with most Fluke multimeters or mV ac measurement tools with these features:
- 400 mV ac range
- 19.05 mm banana jack inputs
- Input accuracy of 2 % or greater to take full advantage of the accuracy of the product
- Input impedance of >1 M?
1 mV/A ac output guarantees easy current readings on you meter
CAT III 600 V safety rating
Specially designed to offer maximum utility in a very compact shape
Take accurate current readings

Estimated Delivery:

12 - 19 Oct, 2026

Guaranteed safe & secure checkout

Product details

Product overview: Fluke 101 Digital Multimeter/i400E Clamp Kit

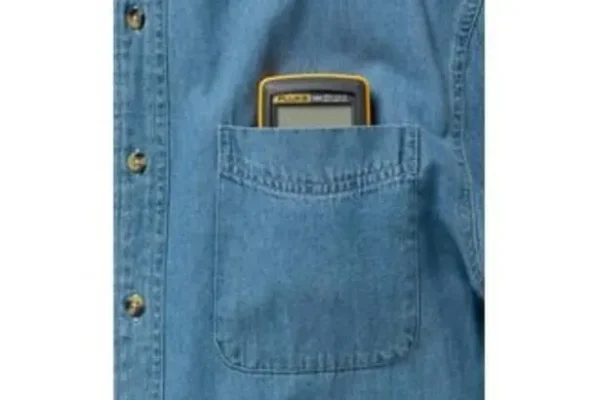

Designed for basic electrical tests, the Fluke 101 digital multimeter offers reliable measurements for residential/commercial electricians and heating and air conditioning technicians. This small, lightweight multimeter fits comfortably in your hand but is rugged enough to withstand daily use for years to come. When it comes to professional-grade affordable multimeters, the Fluke 101 digital multimeter is your best choice.

The Fluke i400E AC Current Clamp is an ideal tool to extend current measurement. It is designed to work with the new Fluke 101, 106 and 107 palm sized digital multimeters, as well as most Fluke multimeters or other voltage measurement tools that accepts 19.05 mm shrouded banana plugs and has mV ac measurement functionality.

Electrical specifications
V AC (40-500Hz)	Range	600.0 mV 6.000 V 60.00 V 600.0 V
	Resolution	0.1 mV 0.001 V 0.01 V 0.1 V
	Accuracy	3.0% ±3 digit 1.0% ±3 digit
V DC	Range	6.000 V 60.00 V 600.0 V
	Resolution	0.001 V 0.01 V 0.1 V
	Accuracy	0.5% ±3 digit
Resistance Ohms	Range	400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ
	Resolution	0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ
	Accuracy	0.5% ±3 digit 0.5% ±2 digit 0.5% ±2 digit 0.5% ±2 digit 0.5% ±2 digit 1.5% ±3 digit
Capacitance	Range	50.00 nF 500.0 nF 5.000 µF 50.00 µF 100.0 µF
	Resolution	0.01 nF 0.1 nF 0.001 µF 0.01 µF 0.1 µF
Frequency (10 Hz – 100 kHz)	Range	50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz
	Resolution	0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz
Duty cycle	Range	0.1% to 99.9%
	Resolution	0.1%
General specifications
CAT rating	CAT III 600 V
V AC range	600.0 V
V DC range	600.0 V
Ohms range	40.00 MΩ
Auto shutoff	Y
Continuity	Y
Capacitor	100.0 µF
Frequency	100.0 kHz
Hold	No
Duty cycle	Yes
Size	130 x 65 x 27mm
Weight	160 g
Battery	Two AAA
Warranty	1 year
Environmental specifications
Operating temperature	0 °C to +40 °C
Storage temperature	-30 °C to +60 °C
Operating humidity	Non condensing (<10 °C) <=90% RH (at 10 °C to 30 °C) <=75% RH (at 30 °C to 40 °C) (Without condensation)
Operating humidity, 40 MΩ	80% RH 10 °C to 30 °C, 70% RH 30 °C to 40 °C
Operating altitude	2,000 meters
Storage altitude	12,000 meters
IP rating	IP 40 per IEC 60529
Vibration requirements	MIL-PRF-28800F, Class 2
Drop test requirements	-10°C and 1 meter to surface, per IEC-61010-1, and Fluke SOP 39.1 for portable Hand-held equipment Shipping container drop per Fluke SOP 39.
EMI, RFI, EMC	Must meet all applicable requirements in IEC/EN 61326-1
Absorption/corrosion	Per Fluke SOP 39.1
Temperature coefficients	Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 ºC

Electrical specifications
AC current range	1 A to 400 A
Output signal 1	mV/A ac
Accuracy	2.0% ±5 digits (45 Hz to 65 Hz) 2.5% ±5 digits (65 Hz to 400 Hz)
Typical bandwith	5 Hz to 20 kHz
Working voltage	600 V ac rms, in compliance with IEC 61010-1 and IEC 61010-2-030
Load impedance	1 A to 400 A
Maximum non-destructive current	600 A
Jaw inner diameter	30 mm
Maximum wire size	600 MCM
Standard plugs	19.04 mm dual banana plugs
Safety specifications
Category rating	IEC 61010-1 and IEC 61010-2-030/IEC 61010-2-031 and IEC 61010-2-032: 600 V CAT III Pollution Degree 2
Electromagnetic environment	IEC 61326-1: Portable
General specifications
Output cable length	1 m
Operating temperature	-10 °C to +50 °C
Storage temperature	-30 ºC to +60 ºC
Relative humidity	≤90% at 10 °C to 530 °C ≤75% at 30 °C to 540 °C ≤45% at 40 °C to 50 °C
IP rating	IEC 60529: IP30 when jaw closed
Temperature coefficients	Add 0.1 x specified accuracy for each °C above 28°C or below 18 °C.
Operating altitude	2,000 meters
Storage altitude	12,000 meters
Vibration requirements	MIL-PRF-28800F, Class 2
Drop test requirements	-10 °C, 1m, 6 sides, oak wood
Jaw impact test requirements	Follow EN/IEC 61010-2-032:2012
EMI, RFI, EMC	IEC/EN 61326-1
Dimensions (H x W x D)	146 x 62 x 34 mm
Weight	150 g
