HDA Series
- HDA Series
KEY FACTS
- Frequency Range: 500 MHz to 10/20 GHz
- Passive Gain: 5 dBi, Active Gain:16 dBi
- Typical Noise Figure (NF): ≤ 1.9 dB Compatible with all HAROGIC
- Spectrum Analyzers, Automatic Antenna Factor Loading
- Total Weight: 680 g, compact and portable
- Ergonomic Design, suitable for extended outdoor use
Details

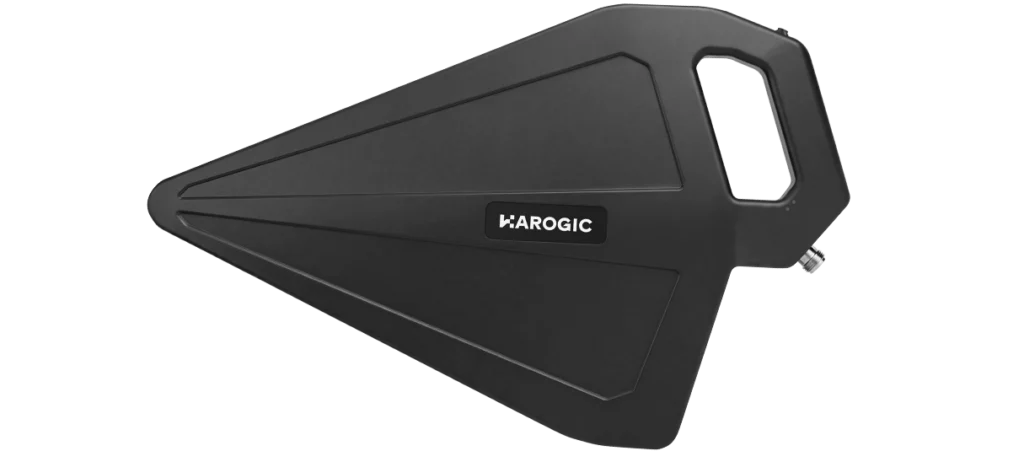

The HAROGIC HDA Handheld Active Directional Antenna delivers ultra-wideband coverage from 500 MHz to 20 GHz in a 680g form factor, extending rapid signal hunting into high-frequency microwave bands. Featuring an optimized directional pattern and switchable Bypass/Active modes, it expertly balances dynamic range and system sensitivity to boost weak signal capture, fast-tracking emitter discovery and source localization in the field. Seamlessly integrating with the full HAROGIC spectrum analyzer lineup, the HDA-200 supports automatic antenna factor loading and features an integrated attitude and heading reference system to stream real-time azimuth, pitch, and roll data—making mobile tactical surveillance more intuitive and highly efficient.
Available Models
HDA SERIES
| Model | Product Manual | Frequency | Gain (typ.) | VSWR (typ.) | Typical Noise Figure (NF) | Weight | Start Price |
|---|---|---|---|---|---|---|---|
| HDA-100 |
|
500 MHz-10 GHz | 5 dBi (AMP OFF) 20 dBi (AMP ON) |
<2.0 | 1.5 dB | 680 g | Get a Quote |
| HDA-200 |
|
500 MHz-20 GHz | 5 dBi (AMP OFF) 16 dBi (AMP ON) |
<2.0 | 1.9 dB | 680 g | Get a Quote |
