KEY FACTS
- Frequency range: 9 kHz to 4.5/6/9.5/20/40 GHz
- IF and image rejection: > 95 dBc (typ.)
- 1 GHz DANL: -168 dBm/Hz (typ.)
- 1 GHz phase noise: < -110 dBc/Hz@10 kHz (typ.)
- Analysis Bandwidth: 100 MHz
- 2.5 hours battery time (typ.)
- Channel Power, ACPR, OBM, Phase Noise and More (std.)
Details
PXE series is the real-time spectrum analyzer up to 20 GHz with analytical bandwidth of 100 MHz and ultra-fast speed of 900 GHz/s, delivering standard spectrum sweep (SWP), IQ streaming (IQS), zero span (DET) and real-time analysis (RTA) working mode. The PXE-200 achieves good dynamic range and phase noise level. It can provide customers with spectrum analyzer, spectrum monitoring, interference finding, RF test and measurement functions
Available Models
PX Series Standard
| Model | Product Manual |
Frequency | Phase Noise 1 GHz, 10 kHz offset |
DANL 1 GHz, Amp On |
Analysis Bandwidth |
Weight, Size | Start Price |
|---|---|---|---|---|---|---|---|
| New PXN-45 |
|
9 kHz-4.5 GHz | -110 dBc/Hz | -168 dBm/Hz |
50 MHz 100 MHz（opt.） |
1.5 kg, 10.1’’ | Get a Quote |
| New PXN-60 |
|
9 kHz-6 GHz | -110 dBc/Hz | -168 dBm/Hz |
50 MHz 100 MHz（opt.） |
1.5 kg, 10.1’’ | Get a Quote |

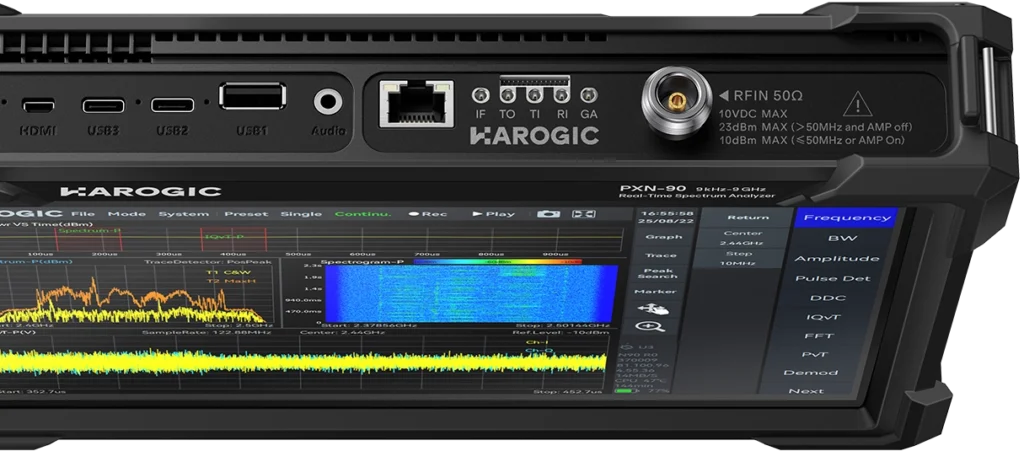

| New PXN-90 |
|
9 kHz-9 GHz | -110 dBc/Hz | -168 dBm/Hz |
50 MHz 100 MHz（opt.） |
1.5 kg, 10.1’’ | Get a Quote |
| PXE-90 |
|
9 kHz-9.5 GHz | -101.6 dBc/Hz | -167.5 dBm/Hz | 100 MHz | 1.5 kg, 10.1" | Get a Quote |
| PXE-200 |
|
9 kHz-20 GHz | -99.7 dBc/Hz | -166.3 dBm/Hz | 100 MHz | 1.5 kg, 10.1" | Get a Quote |
| PXN-400 |
|
9 kHz-40 GHz | -107.5 dBc/Hz | -160.0 dBm/Hz | 100 MHz | 1.5 kg, 10.1" | Get a Quote |
