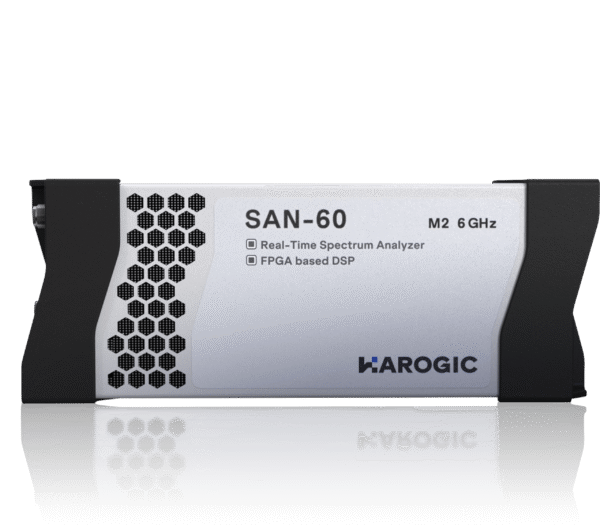

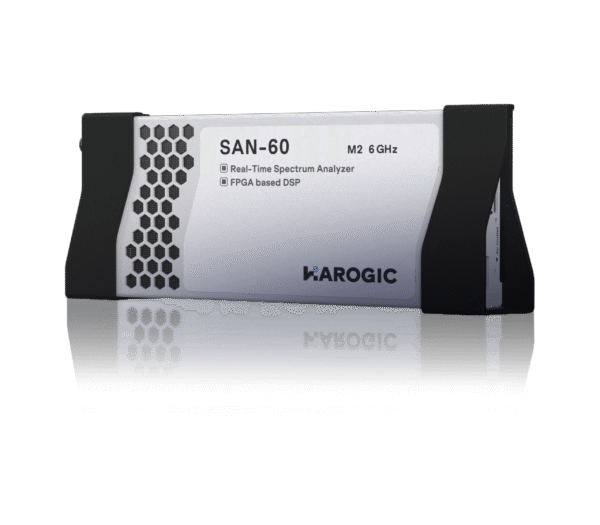

SAN Series
KEY FACTS
- Frequency Range: 9 kHz To 4.5/6.3 GHz
- 1 GHz DANL: -162 dBm/Hz
- 1 GHz Phase Noise: -110 dBc/Hz@10 kHz
- Analysis Bandwidth: Up to 25 MHz
- USB3.0/2.0 Type C Interface
- Highly Compatible API Interface
- ARM and X86 Processor Are Supported
- Linux and Windows Operating Systems Are Supported
Benefits Highlight
SAN series offers exceptional RF spectrum analysis in a compact, USB-powered form. With a frequency range of 9 kHz to 6.3 GHz, it ensures precise measurements through its 25 MHz analysis bandwidth and over 20 GHz/s sweep speed. Its superior dynamic range of -160 dBm/Hz and excellent phase noise performance at -110 dBc/Hz at 1 GHz make it an invaluable tool for accurate and efficient spectrum analysis.
Product details
KEY FACTS
- Frequency Range: 9 kHz To 4.5/6.3 GHz
- 1 GHz DANL: -162 dBm/Hz
- 1 GHz Phase Noise: -110 dBc/Hz@10 kHz
- Analysis Bandwidth: Up to 25 MHz
- USB3.0/2.0 Type C Interface
- Highly Compatible API Interface
- ARM and X86 Processor Are Supported
- Linux and Windows Operating Systems Are Supported
Benefits Highlight
SAN series offers exceptional RF spectrum analysis in a compact, USB-powered form. With a frequency range of 9 kHz to 6.3 GHz, it ensures precise measurements through its 25 MHz analysis bandwidth and over 20 GHz/s sweep speed. Its superior dynamic range of -160 dBm/Hz and excellent phase noise performance at -110 dBc/Hz at 1 GHz make it an invaluable tool for accurate and efficient spectrum analysis.
